How do portable solar lamps work?
Understanding how portable solar lamps work helps you make better decisions, whether you are supporting humanitarian operations, looking for dependable off-grid solar lighting or preparing for power cuts at home. This guide explains the fundamentals. We cover solar lamp basics, charging and storage, battery runtime, common misconceptions, and when portable solar lighting works best.
Simple technology, serious impact
Despite their simple look, portable solar lamps are compact energy systems. They capture sunlight, convert it and store it as electricity, and then release it as efficient Light Emitting Diode (LED) light when you need it. While the principle seems straightforward on paper, doing it well in practice is not.
Portable solar lamp basics explained
Every portable solar lamp has four core componets: solar panel, battery, LED light and internal electronics or (printed circuit board).
1. The solar panel
1. The solar panel
It all starts with the solar panel which converts sunlight into electricity using photovoltaic cells. When sunlight hits the silicon cells inside the panel, it excites the electrons. The ensuring movement of the electrons creates an electrical current in a process known as the photovoltaic effect.
What is fascinating about this process is even small solar panels can generate meaningful energy over the course of a day. The key is exposure to daylight. The power output of a solar panel is measured in watts (W).
2. The battery
2. The battery
The battery stores the electricity generated by the solar panel. Most portable solar lamps use lithium-ion batteries which store energy efficiently and discharge it steadily. Battery capacity is measured in watt-hours (Wh), which measure how much energy a battery can store.

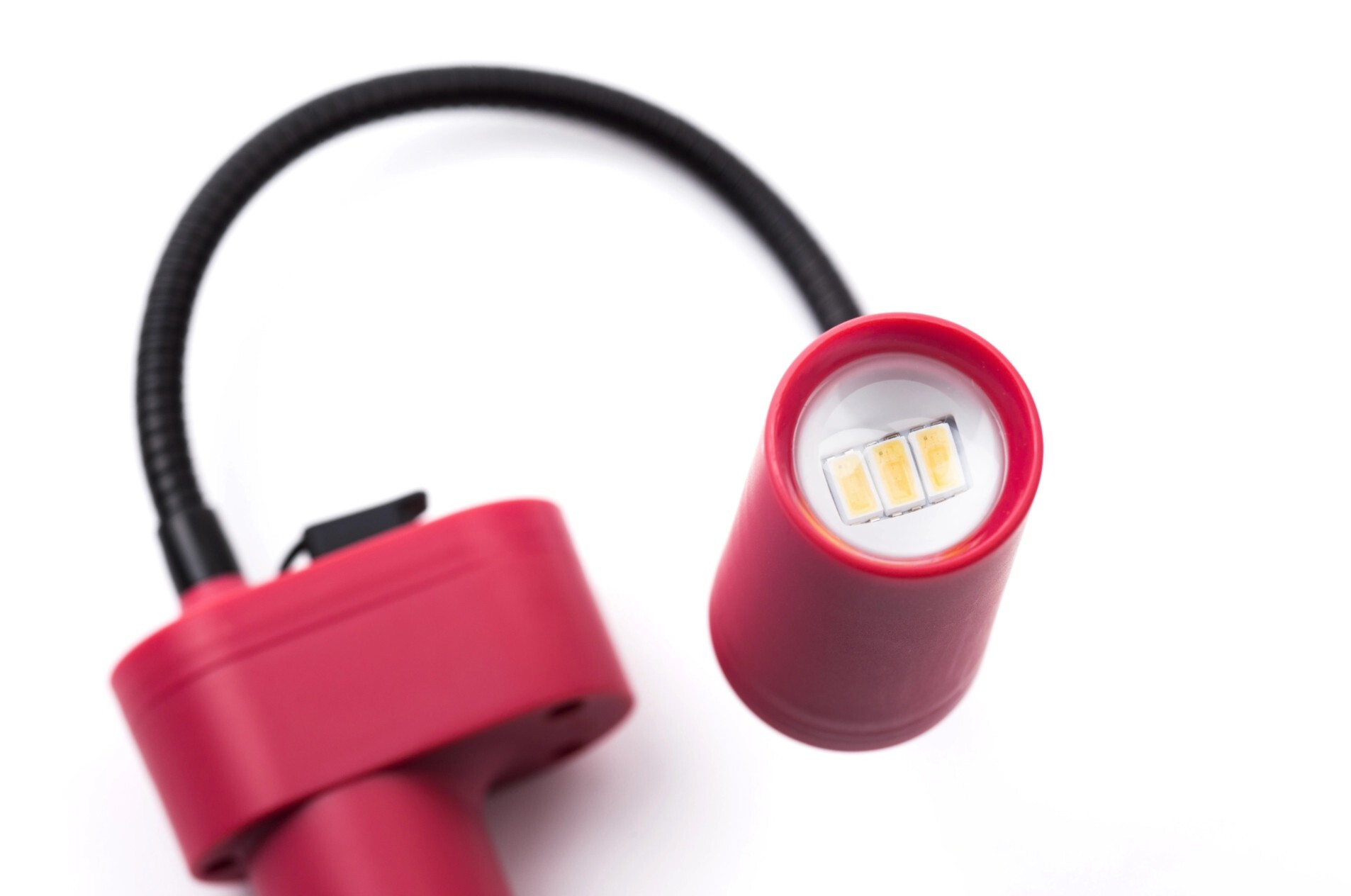

3. The LED light
3. The LED light
LEDs convert electrical energy stored in the battery into visible light. LEDs are highly efficient and produce more light per unit of energy, as well as far less heat in comparison to incandescent bulbs or kerosene lanterns. Their efficiency is why portable solar lamps can run for many hours on relatively small batteries.

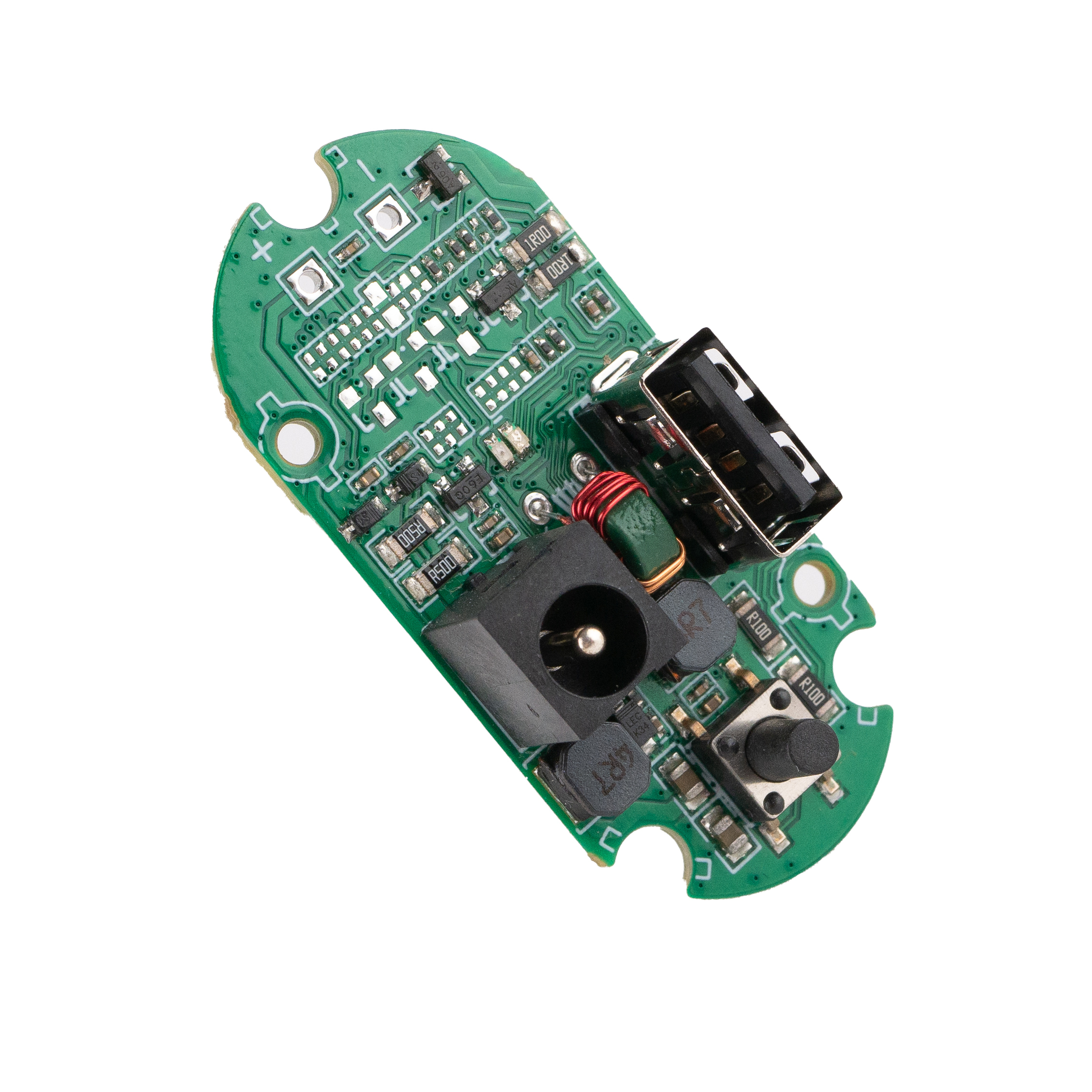

4. The Printed Circuit Board (PCB)
4. The Printed Circuit Board (PCB)
The PCB is the “brains” of the solar lamp. It connects the solar panel, battery and LED light carrying out several crucial functions that include power management, battery management, charge control and mode control.
In a nutshell, the PCB manages the flow of electricity; protects the battery from damage by regulating deep discharge and preventing overcharging; and controls the LED light’s functionality.
Altogether, these four components make portable solar lamps small self-contained solar energy systems. The balance between their components determines their performance.
Charging and storage explained
Charging in portable solar lamps depends on three factors: solar panel size, sunlight intensity, and exposure time.
If a solar panel produces 4 watts of power in full sun and received five hours of strong daylight, it can generate roughly 20 watt-hours (Wh) of energy in that period.
Solar output varies by location and weather. Even in cloudy climates, solar panels still produce electricity because they respond to daylight, not just direct sunshine. So while solar output is lower and less efficient under heavy cloud, it does not fall to zero.
Monocrystalline vs polycrystalline solar panels
Monocrystalline solar panels are made from single-crystal silicon. They are typically more efficient, perform better in low-light conditions and high temperatures, have a longer lifespan, and tend to cost more to manufacture.
Polycrystalline solar panels are made from multiple silicon fragments melted together. They are slightly less efficient, usually cheaper to manufacture, and are thus more cost-effective.
In compact portable solar lamps, solar panel efficiency matters. A higher-efficiency panel can charge the battery faster and more reliably, especially where sunlight is limited. This makes monocrystalline the preferred choice in many portable models.
With portable solar lamps, system balance is critical. A large battery paired with an underpowered solar panel may never fully charge. A well-designed solar lamp matches solar panel capacity with battery size and expected usage.
Battery quality and runtime: What really determines how long a solar lamp lasts?
Battery capacity alone does not determine a solar lamp’s runtime. The lamp’s power consumption is also an important factor. The basic runtime formula is: Runtime in hours = Battery capacity (Wh) ÷ Power draw (W).
For example, if a lamp has a 4.8 Wh battery and the LED consumes 0.6W on its highest (brightest) setting, the lamp will produce 7 hours of light. Lowering the brightness will reduce the power draw, significantly extending runtime.
A battery’s material composition significantly affects performance, lifespan, efficiency, safety, and environmental impact. Batteries in portable solar lamps often use lithium-based chemistries, notably lithium-ion (Li-ion).
Lithium-based batteries are widely used because they offer high energy density (how much energy a battery can store within a small cell) and relatively long cycle life (the total number of full charge and discharge cycles). Additionally, they are highly efficient, rechargeable and have a compact form factor.

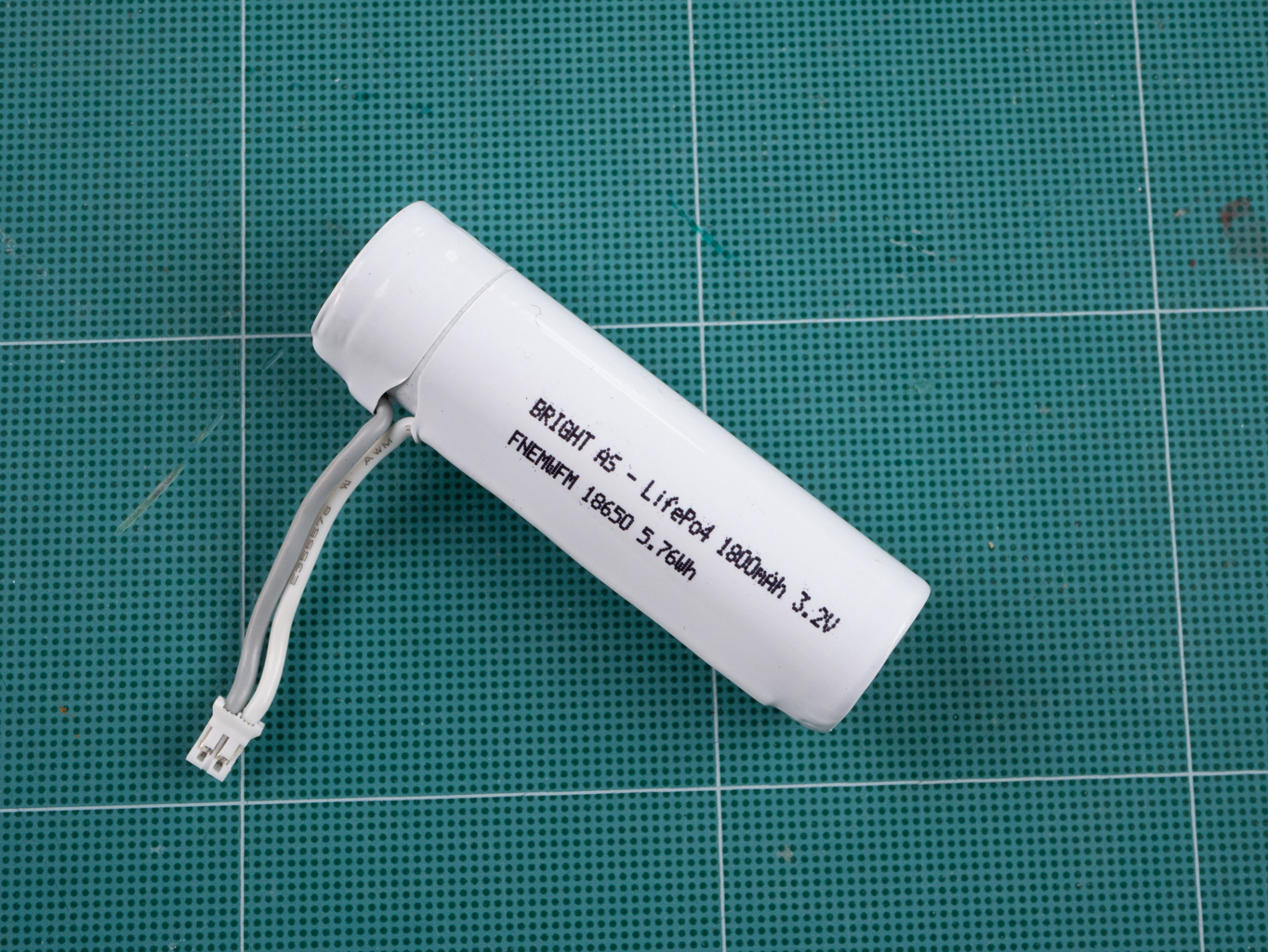

The two most popular types of Li-ion batteries used in solar lamps are Nickel Manganese Cobalt Oxide (NMC) and lithium iron phosphate (LiFePO₄). LifePO₄ batteries have several characteristics that make them more ideal for portable solar lamps;
- Safety and thermal stability: LifePO₄ batteries offer significantly better thermal and chemical stability. This makes them handle temperature fluctuations and repeated solar-charging cycles better. From a safety perspective, their chemical stability reduces fire risks making them safe for use in scenarios where solar lamps must be charged unattended.
- Lifespan and longer cycle life: LifePO₄ batteries have a much longer cycle life than standard Li-ion batteries, this is very important for solar lamps where batteries may cycle daily and are expected to last for years. The longer lifespan translates to fewer replacements, making LifePO₄ more cost-effective over time.
- Sustainability: LifePO₄ batteries do not contain heavy metals like cobalt and are more environmentally friendly. Additionally, they are considered more preferable from an ethical-sourcing perspective.
NMC batteries have a higher energy density than LifePO₄, but are more sensitive to overcharge, damage and poor thermal management. NMC batteries also have a shorter life cycle relative to LifePO₄ batteries, and a narrower operational temperature window.
Besides battery chemistry, battery performance is also affected by:
- Temperature
- Charging habits
- Depth of discharge
- Age
A well-designed portable solar lamp balances battery size, LED efficiency, and charging capacity. Simply increasing battery size without improving the solar panel or PCB rarely improves real-world performance.
Some common misconceptions about portable solar lamps
Solar lamps do not work in cloudy climates
They do! However, solar output is reduced under cloud cover, but solar panels continue generating electricity in daylight. Performance depends on design and exposure, not just geography. Solar photovoltaic (PV) systems are widely deployed across Northern Europe, including regions with moderate sunlight levels.
More lumens always means better
Lumens measure brightness, well generally. Technically, lumens are in fact the standard unit for measuring luminous flux, which is the perceived power of visible light emitted by a source in all directions. So, more lumens means more light output. But, brightness alone does not determine quality.
Light distribution, colour temperature and glare matter. Even, diffused light can be more comfortable and functional than a harsh, concentrated beam.
In emergency shelters or household settings, usable light often matters more than maximum brightness.
Bigger battery automatically means better performance
A large battery increases potential runtime. It also increases weight and charging time.
If the lamp’s solar panel is too small, the battery may never reach full charge. That reduces usable capacity in practice.
Effective design matches battery size with solar panel output and intended usage patterns.
All portable solar lamps are the same
No, they are not! Differences include:
- Solar panel efficiency
- Battery chemistry
- Internal electronics
- Weather resistance
- Repairability
- Light quality
Some portable solar lamps are designed for occasional camping, others are engineered for daily use in demanding environments.
For humanitarian response or household resilience, durability and system balance matter as much as headline specifications.
Where portable solar lighting works best
Portable solar lamps are most effective where reliability and independence matter. They work well for:
- Refugee and displacement
- Emergency preparedness kits
- Field operations
- Rural off-grid homes
- Household power outages
- Camping
As they require no fuel, operating costs are minimal after purchase and have little to no maintenance needs. For organisations operating in remote areas, or households building resilience against outages, this autonomy is valuable.
Well-designed lamps also integrate USB charging, allowing mobile phones or small devices to be powered alongside lighting.
Why design matters in off-grid solar lighting
The principle behind portable solar lamps is simple, but the difference lies in execution. A balanced system includes:
- Efficient solar panels
- Appropriately sized batteries
- Durable housing
- Comfortable, usable light
Design decisions influence charging speed, runtime, lifespan, and safety.
At BRIGHT, portable solar lamps such as Sol, SunBell and Start+ are engineered as integrated systems. Solar panel capacity, battery size and light output are calibrated together. The aim is reliability, not just headline brightness or battery size. Afterall, in emergency preparedness, humanitarian response, and everyday resilience, reliability is what counts.
If you want to see how balanced system design translates into real-world performance, explore our solar lamps and discover how durable off-grid solar lighting can strengthen preparedness and resilience.
